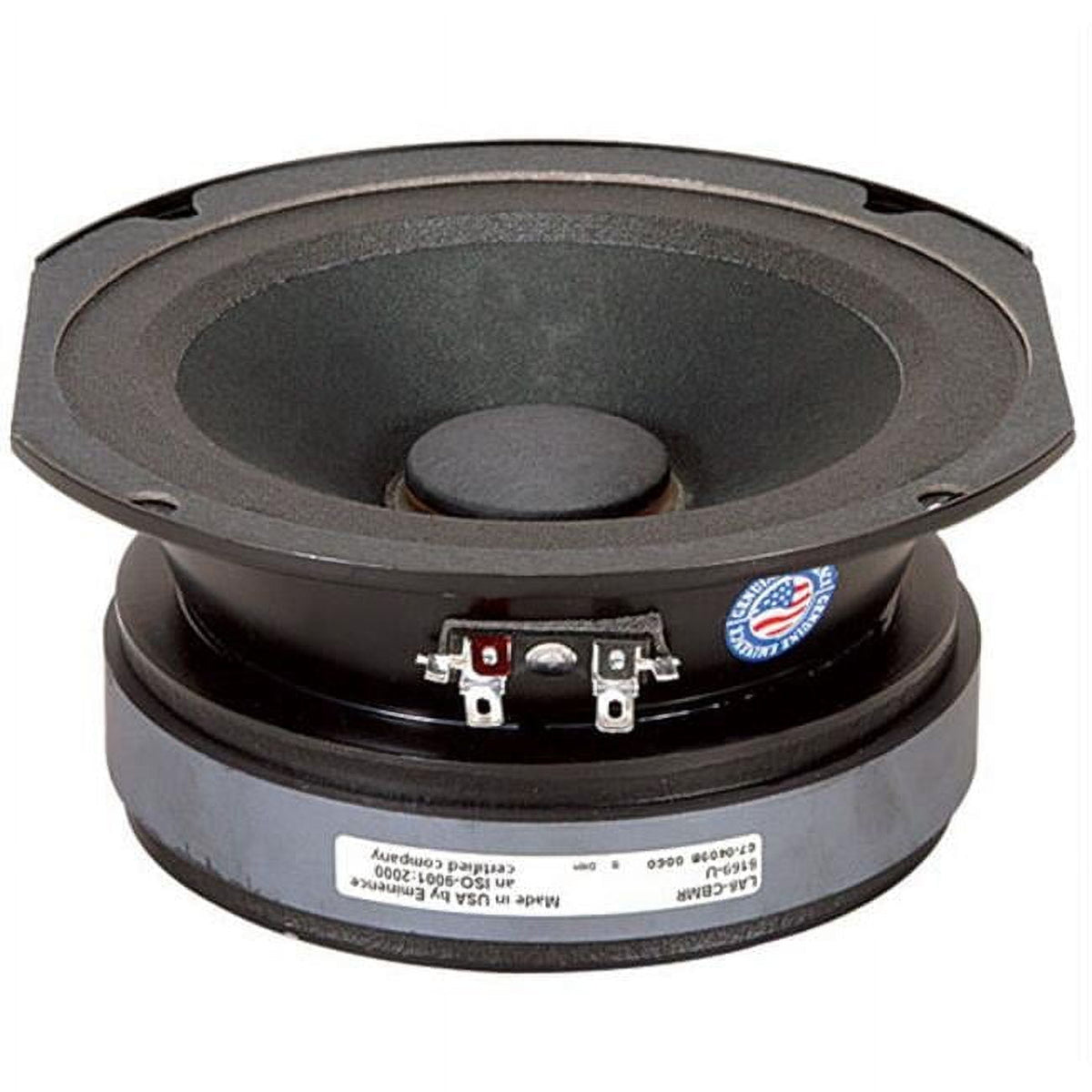

LLC 300 Watt Max Mid Speaker
$34.95
Skip to product information
Recommended for professional audio midrange from 500 Hz-3 kHz. Basket is closed. The truncated basket is designed to minimize acoustical center spacing.
Designed to cover 500 Hz-3 kHz. Also practical for standard three-way designs.
Two-layer copper voice coil with Kapton coil former.
Premium pressed steel basket for maximum strength.
Vented and extended core.
Paper cone with cloth cone edge.
Power handling: 150 watts RMS.
VCdia: 1.5.
Le: 0.33 mH.
Impedance: 8 ohms.
Re: 6.3 ohms.
Frequency range: 500-5,400 Hz.
Magnet weight: 38 oz.
Fs: 460 Hz.
SPL: 97.8 dB.
Vas: 0.01 cu. ft.
Qms: 3.13.
Qes: 1.24.
Qts: 0.89.
Xmax: 0.2 mm.
Dimensions: Overall diameter: 6.59; Width across flats: 6; Baffle hole diameter: 5.65; Depth: 2.77.- SKU: ZX9TBALL8837
