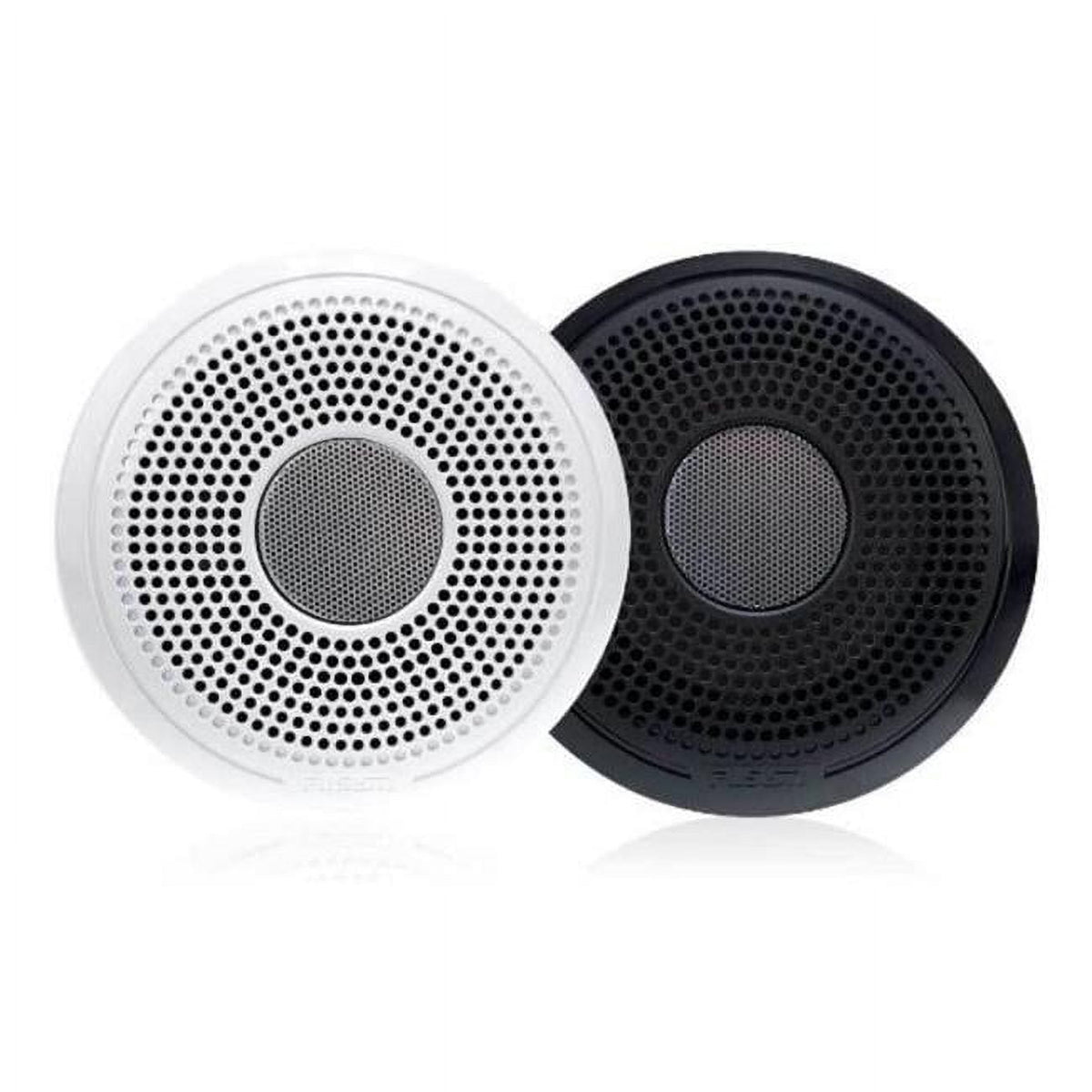

Fusion Electronics 4 in. XS-F40CWB Speaker
$38.61
Skip to product information
Garmin Fusion XS Series Marine Speakers
Brand New Includes One Year Service Contract
The Garmin XS Series Marine Speakers deliver high-performance acoustics, enhanced protection from the environment and multi-color RGB LED lighting. It features a high-Picture Clarity low-frequency acoustics with Polypropylene Cone Technology. The XS Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration, and UV. The aluminum dome tweeter provides smooth upper-frequency response and increased efficiency, which delivers crystal-clear music reproduction. The overhung design reduces distortion and increases power and efficiency to deliver a truly high-quality sound experience. It is build up with an open basket construction allows for extended power handling and versatile mounting options with reduced mounting depth. It has a provide bright and even LED illumination in a wide range of colors.
XS Series Marine Speakers Features:
GENERAL:
Fusion Electronics 4 in. XS-F40CWB Speaker
$38.61
Brand New Includes One Year Service Contract
The Garmin XS Series Marine Speakers deliver high-performance acoustics, enhanced protection from the environment and multi-color RGB LED lighting. It features a high-Picture Clarity low-frequency acoustics with Polypropylene Cone Technology. The XS Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration, and UV. The aluminum dome tweeter provides smooth upper-frequency response and increased efficiency, which delivers crystal-clear music reproduction. The overhung design reduces distortion and increases power and efficiency to deliver a truly high-quality sound experience. It is build up with an open basket construction allows for extended power handling and versatile mounting options with reduced mounting depth. It has a provide bright and even LED illumination in a wide range of colors.
XS Series Marine Speakers Features:
- XS Series Marine Speakers
- 4 Ohm Impedance
- Polypropylene Cone Technology
- True-Marine Design
- Aluminum Dome Tweeter
- Designed to Comply with ISO12216
- Overhung Voice Coil
- Fully Sealed Crossover Components
- Open Basket Construction
- Multi-color RGB LED Lighting
- IP65 Rated
GENERAL:
- Physical dimensions (Diameter x Depth):
- 7.7Classic: 7.72x 3.70(196 x 94 mm)
- 7.7Sports: 7.72x 3.82(196 x 97 mm)
- 6.5Classic: 6.97x 3.19(177 x 81 mm)
- 6.5Sports: 6.97x 3.27(177 x 83 mm)
- 4Classic: 5.31x 2.68(135 x 68 mm) - Water and dust rating: IP65
- Configuration: Coaxial
- Speaker size:
- XS-F77CWB / XS-FL77SPGW / XS-F77SPGW: 7.7
- XS-F65CWB / XS-FL65SPGW / XS-F65SPGW: 6.5
- XS-F40CWB: 4 - Peak power (Watts)
- 7.7Speaker: 240 W
- 6.5Speaker: 200 W
- 4Speaker: 120 W - RMS power (Watts)
- 7.7Speaker: 60 W
- 6.5Speaker: 50 W
- 4Speaker: 30 W - Sensitivity (1 W / 1 m)
- 7.7Speaker: 92 dB
- 6.5Speaker: 91 dB
- 4Speaker: 87 dB - Frequency response
- 7.7Speaker: 70 Hz-18 kHz
- 6.5Speaker: 80 Hz-18 kHz
- 4Speaker: 100 Hz-18 kHz - Nominal impedance: 4 ohms
- Recommended amplifier power (RMS)
- 7.7Speaker: 25-200 W/Ch
- 6.5Speaker: 20-150 W/Ch
- 4Speaker: 15-80 W/Ch - LED lighting: Yes (RGB; sports-style only)
- LED Supply Voltage: 10.8-16 VDC (sports-style only)
- LED load current
